PHOIBOS 150 with 2D-CMOS and 3D(2D) Spin VLEED Detector

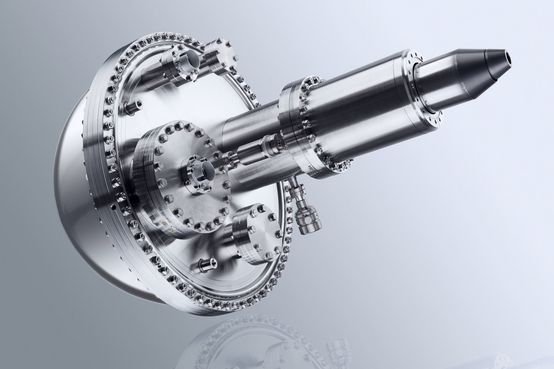

The PHOIBOS 150 hemispherical energy analyzer is the-state-of-the-art analysis solution for photoelectron spectroscopy. This analyzer can be operated in all relevant analysis modes, such as ARPES, XPS, UPS, as well as AES, ISS and LEISS. Its design and the modular supplementary hardware makes this analyzer the most versatile PES analyzer in the market.

The patented design of the detector section allows measurements of all three spin components and subsequent 2D ARPES merasurements. The 2D detector is a full scale 2D CMOS detector un undiminished performance in standard PES. The spin channel consist of a 90° deflector to acess the ut of plan spin component and a special rotator lens to swich between the two in plance components of the spin.

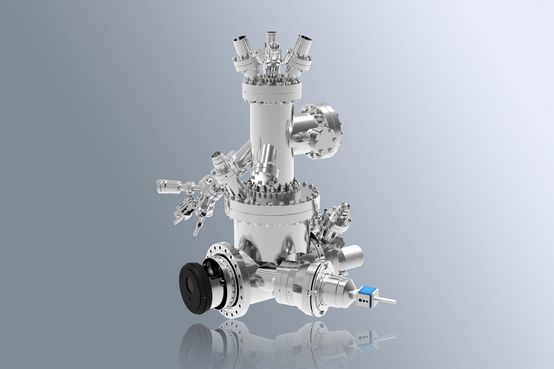

The actual spin detector is the FOCUS Ferrum detector, where an freshly prepared iron oxide film is the spin selective scattering target. With the VLEED detector each spin channel is measured separately with a high efficiency after switching integarted magentic coils for spin selecton. The preparation of the scatering target is fully automated.

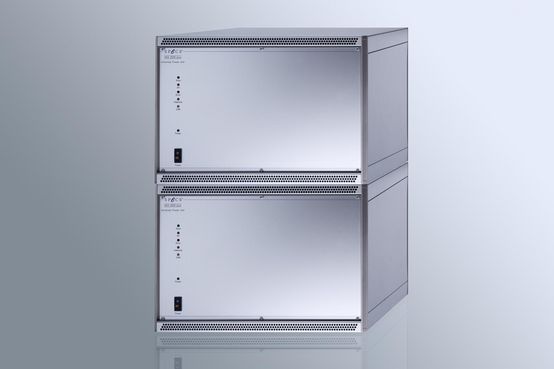

The energy analyzer sectionis equipped with 8 customizable entrance and 3 exit slits. For highest energy resolution the entrance slit can be chosen down to 50 µm, providing achievable energy resolution better than 1.8 meV. The analyzer comes with a highly stable power supply, the HSA 3500 plus, for best performance in a wide kinetic energy range.

A classical CCD camera detection system is available on request.
