PHOIBOS 150 NAP 2D-CMOS

State of the art hemispherical energy analyzer with 2D-CMOS detector for photoelectron spectroscopy measurements (XPS and UPS) in the pressure regime from UHV to near ambient pressure (NAP)

This product is discontinued

The PHOIBOS 150 NAP Analyzer is a true 180° hemispherical energy analyzer with 150 mm mean radius. It consists of a differentially pumped electrostatic pre-lens, with a three-stage differentially pumped PHOIBOS 150 analyzer. Thus, the design concept provides four separate pressure stages separated by apertures. The first pumping stage (pre-lens) is separated from the analytic chamber by a nozzle with a customizable opening at the tip with diameters between 0.3 mm and 1 mm. By using a turbopump on the pre-lens stage, a pressure difference of four orders of magnitude (compared to the analysis chamber) can be achieved.The first and second stages are separated by an aperture. An in-lens gate valve allows a high-vacuum seal between of the PHOIBOS 150 Analyzer and NAP pre-lens and enables venting of the analysis chamber and pre-lens without venting the energy analyzer.

For Imaging NAP-XPS the pre-lens can be equipped with the SPECS NAP-XPS Imaging Lens Module that supports two different operation modes, one optimized for lateral resolution and one for transmission. In the lateral resolving mode the acceptance angle can be freely adjusted between +/- 3° to +/- 8° giving an ultimate lateral resolution of better than 10 µm with an acceptance area of 0.6 mm in diameter.

KEY FEATURES

  • Wide Angle Pre-Lens with 44 ° Acceptance Angle
  • Near Ambient Working Pressures up to 100 mbar (depending on configuration)
  • Large pass energy range
  • Working range up to 3.5 keV (upgradable to 7 keV with corresponding power supply and detector)
  • High energy and angular resolution
  • High spatial resolution with imaging lens module
  • Ultimate flexibility by switching between high transmission and high lateral resolution mode
  • Fast detectors with high dynamic range for fast real time data acquisition in snapshot mode
  • Pneumatic in-lens gate valve
  • 4 differential pumping stages
  • Full detector flexibility (MCD, 1D-DLD, 2D-DLD, 2D-CMOS)

R&D100 in 2010
The PHOIBOS 150 NAP Analyzer won the R&D 100 award for the best 100 products developed in 2010.

MADE FOR THESE METHODS

1

SPECIFICATIONS

PHOIBOS 150 NAP 2D-CMOS
Operation
Energy Dispersion

Hemisphere

Slits/Apertures

8 Entrance, 3 Exit slits and Iris aperture

Magnetic Shielding

Double µ-Metal Shielding

Lens Modes

Angular Resolving, Transmission and Magnification (Lateral Resolution) Lens Modes

Kinetic Energy Range

0 - 3500 eV

Pass Energies

0 - 550 eV continously adjustable

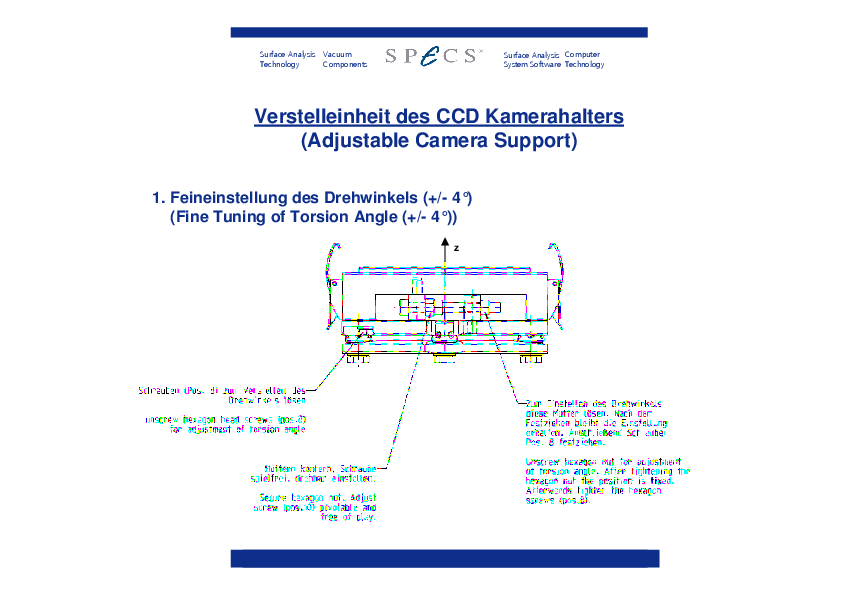

Detector

2D-CCD/CMOS Detector

Measurement Modes

Snapshot mode, Sweeping mode, Fixed energy mode

Energy Window

13% of Pass Energy

Electric Isolation

up to 7 keV

Electronics

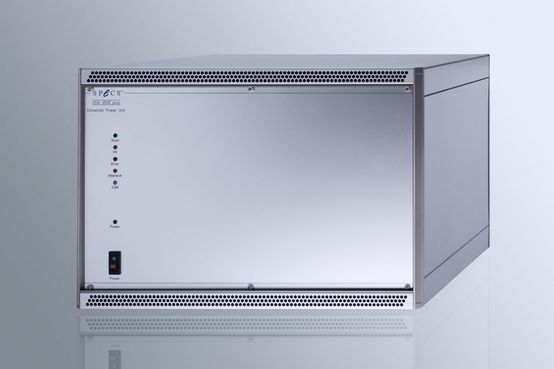

HSA 3500 plus HT 101 for analyzer and HSA 3500 plus HT 173 for pre-lens

Working Pressure

up to 30 mbar (higher pressure values achievable with corresponding nozzle diameters and differential pumping packages)

Performance
Acceptance Angle

±22°

Angular Resolution

< 0.7°

Energy Resolution

< 10 meV

Lateral Resolution

<15 μm (guaranteed), <10 μm (achievable) with imaging lens module

Smallest Acceptance Spot

Without imaging lens module the smallest acceptance spot is defined by the excitation spot of X-ray source or nozzle diameter

Detector Channels

1900 x 1200 (with channel binning)

XPS Count Rates UHV

70 kcps (guaranteed), 150 kcps (achievable) *

XPS Count Rates 10 mbar

7 kcps (guaranteed), 15 kcps (achievable) *

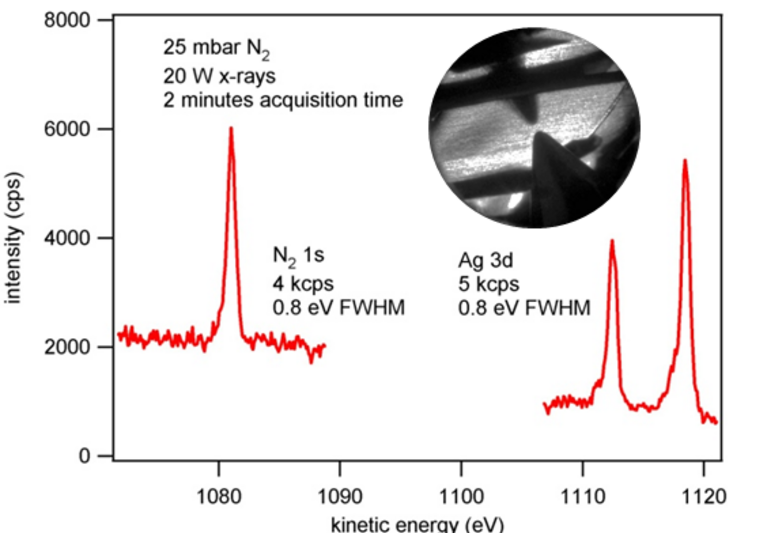

XPS Count Rates 25 mbar

0.5 kcps (guaranteed), 1.5 kcps (achievable) *

.

* Ag 3d, FWHM < 0.85 eV, small spot monochromated X-ray source µ-FOCUS 600, Al Kα anode, 20 W, Spot size < 250 µm

Mounting
Mounting Flange

DN150 CF (8" OD)

Working Distance

300 - 500 µm (for standard nozzle with 300 µm diameter)

RELATED PRODUCTS

18

APPLICATION NOTES

PUBLICATIONS

  1. (2021) A comparative study of electrochemical cells for in situ x-ray spectroscopies in the soft and tender x-ray range
    Read more
  2. (2021) In situ investigation of the bismuth vanadate/potassium phosphate interface reveals morphological and composition dependent light-induced surface reactions
    Read more
  3. (2019) New Insight into the Gas-Sensing Properties of CuOx Nanowires by Near-Ambient Pressure XPS
    Read more
  4. (2019) Surface Plasmon Enabling Nitrogen Fixation in Pure Water through a Dissociative Mechanism under Mild Conditions
    Read more
  5. (2018) Electrifying model catalysts for understanding electrocatalytic reactions in liquid electrolytes
    Read more
  6. (2018) Investigation of gas sensing mechanism of SnO2 based chemiresistor using near ambient pressure XPS
    Read more

SPARE PARTS

8
Product image
Product description
Article No.

Channelplates Set - 1 pair MCP 40

Spare channelplate set for all 40 mm CCD detectors

2060009045
Phosphor screen

Spare phosphor screen for all 40 mm CCD detectors. Exchange with channelplates is recommended.

2060008804
Cu gasket for PHOIBOS 150

PHOIBOS 150 analyzer main flange gasket for Releases R5, R6, R7

2074050088
Nozzle 0,3 mm, double coated

Nozzle 0,3 mm for 7 kV PHOIBOS 150 Backfilling Pre-Lens

2055020988
Nozzle 1,0 mm, double coated

Nozzle 1,0 mm for 7 kV PHOIBOS 150 Backfilling Pre-Lens

2055022579
Rotary feedthrough for IRIS

Replacement feedthrough for PHOIBOS Release R5 & R6 iris mechanism

2060001175
Spindle with Spur and Bevel Gear for Iris

Replacement spindle for PHOIBOS Release R5 & R6 iris mechanism

2055021656
Tubus 3 with Iris

Replacement iris mechanism for PHOIBOS Release R5 & R6

2079150291
