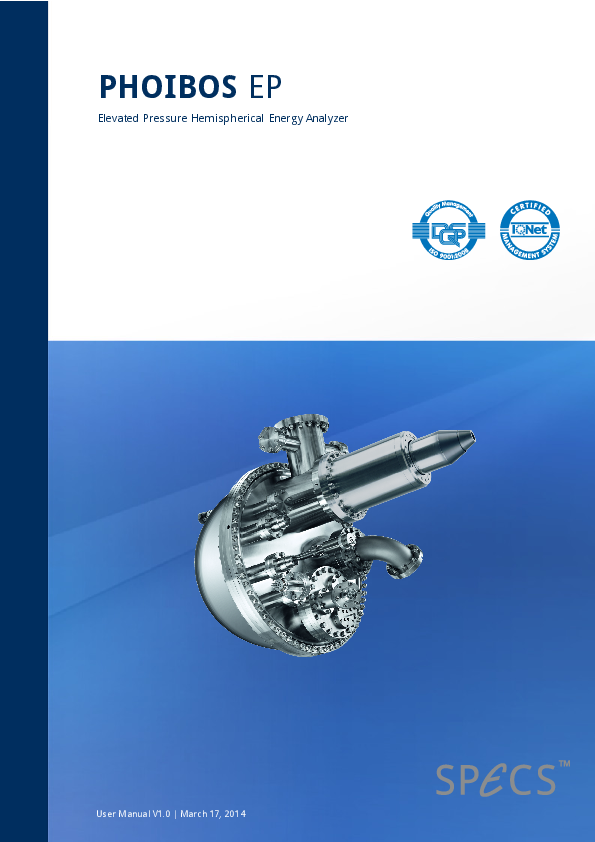

DetailPHOIBOS 150 EP MCD
State of the art hemispherical energy analyzer with MCD-9 detector for photoelectron spectroscopy measurements (XPS and UPS) in the pressure regime from UHV to elevated pressure regime (EP) up to 1 mbar.
This product is discontinued
The PHOIBOS 150 EP analyzer is an integral part of all PHOIBOS 150 NAP analysers, but in contrast to the NAP version is operating without the wide acceptance angle pre-lens. Therefore, it has 3 diferential pumping stages and can operate at pressures up to 1 mbar. The first differential pumping stage is separated from the analysis chamber by a nozzle with a customizable opening at the tip with diameters between 0.3 mm and 5 mm.
Depending on its configuration the PHOIBOS 150 EP can perform XPS und UPS measurements at pressures of up to 1 mbar. It offers full flexibility to be equipped with all available 1D and 2D detectors. The modular building concept enables the user to upgrade a PHOIBOS 150 EP to a full PHOIBOS 150 NAP analyzer by simply adding the pre-lens together with the corresponding electronics and additional differential pumping.
KEY FEATURES
- Elevated working pressures up to 1 mbar depending on configuration
- Upgradeable to complete PHOIBOS 150 NAP analyser including wide acceptance angle pre-lens
- Up to 30° acceptance angle in angle in resolved and transmission mode
- High energy and angular resolution
- Working range up to 3.5 keV
- Large pass energy range
- 3 differential pumping stages
- Fast detectors with high dynamic range for fast real time data acquisition in snapshot mode
- Full detector flexibility (MCD, 1D-DLD, 2D-DLD, 2D-CCD/-CMOS)
SPECIFICATIONS
| Energy Dispersion | Hemisphere |
| Slits/Apertures | 8 Entrance, 3 Exit slits and Iris aperture |
| Magnetic Shielding | Double µ-Metal Shielding |
| Lens Modes | Angular Resolving, Transmission and Magnification (Lateral Resolved) Lens Modes |
| Pass Energies | 0 - 550 eV continously adjustable |

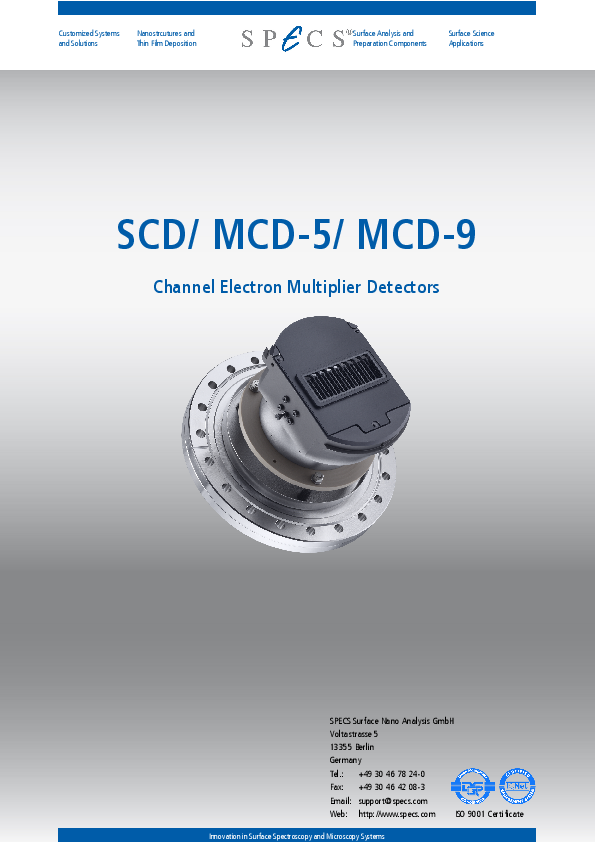

| Detector | MCD-9 |
| Kinetic Energy Range | 0 - 3500 eV |
| Measurement Modes | Sweeping mode, Fixed energy mode |
| Energy Window | 13% of Pass Energy |
| Electric Isolation | up to 3.5 keV |
| Electronics | HSA 3500 plus HT104 |
| Working Pressure | up to 1 mbar (up to 10-4 mbar without nozzle) |
| Angular Resolution | only with 2D detector |
| Energy Resolution | < 25 meV |
| Acceptance Angle | ±15° |
| Smallest Acceptance Spot | 100 µm |
| XPS Count Rates UHV | 20 kcps* |
| Lateral Resolution | only with 2D detector |
| XPS Count Rates 1 mbar | 16 kcps* |
| Detector Channels | 9 |
| . | * Ag 3d, FWHM < 0.85 eV, non-monochromatic X-ray source XR 50, Mg Kα anode, 300 W, N2 gas atmosphere |
| Mounting Flange | DN150 CF (8" OD) |
| Working Distance | 300 - 500 µm (for standard nozzle with 300 µm diameter) |
