PHOIBOS 150 2D-CMOS/-CCD

Hemispherical Energy Analyzer with 2D CMOS Detector for XPS, ARPES, ISS and LEISS with 150 mm Mean Radius

The PHOIBOS 150 hemispherical energy analyzer is the state-of-the-art analysis solution for photoelectron spectroscopy. This analyzer can be operated in all relevant analysis modes, such as ARPES, XPS, UPS, as well as AES, ISS and LEISS. Its design and the modular supplementary hardware makes this analyzer the most versatile PES analyzer in the market.

With a 2D CMOS detector is shows outstanding performance in countrate, linearity and a true pule counting mechanism. It combines a state of the art lens system with a proven hemipshere design for highest transmission and resolution. The analyzer can be operated in transmission (XPS/UPS), angular resolved (ARPES) and magnification mode (slab imaging).

The energy analyzer sectionis equipped with 8 customizable entrance and 3 exit slits. For highest energy resolution the entrance slit can be chosen down to 50 µm, providing achievable energy resolution better than 1.8 meV. The analyzer comes with a highly stable power supply, the HSA 3500 plus, for best performance in a wide kinetic energy range.

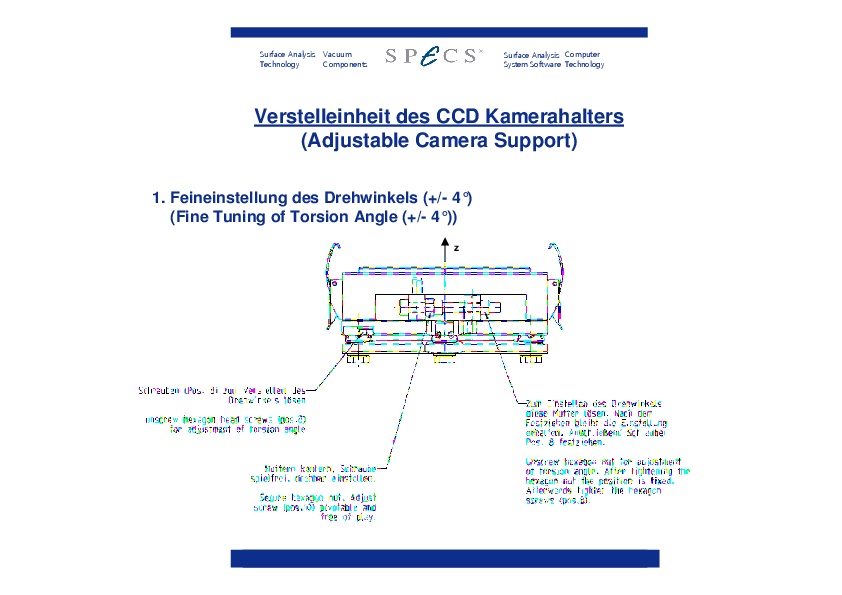

A classical CCD camera detection system is available on request.

KEY FEATURES

  • High Performance Analyzer for XPS, ARPES, AES, ISS and LEIS
  • 150 mm Mean Radius
  • Energy resolution better than 1.8 meV
  • Angular Resolution better than 0.1°
  • 2D MCP Chevron Detector with CMOS (or CCD)
  • Double µ-Metal Shielding

MADE FOR THESE METHODS

1

SPECIFICATIONS

PHOIBOS 150 2D-CMOS/-CCD
Performance
Energy Resolution

< 1.8 meV

Angular Resolution

< 0.1°

k-Resolution

N/A

Acceptance Angle

±15°, ±7°, ±4° and ±3°

Lateral Resolution

< 35 µm

Smallest Acceptance Spot

100 µm

XPS Count Rates UHV

> 0.5 Mcps @ 0.85 eV and > 1.5 Mcps @ 1.00 eV FWHM

Detector Channels

1285x730 (with Channel Binning)

Operation
Kinetic Energy Range

0-3500 eV

Pass Energies

0-550 eV Continously Adjustable

Energy Dispersion

Hemisphere

Lens Modes

Transmission Mode, Angular Resolved Mode, Magnification (Lateral Resolved) Mode

Measurement Modes

Snapshot Mode, Sweeping Mode, Fixed Energy Mode

Detector

2D CMOS Detector

Slits/Apertures

8 entrance and 3 exit slits and iris aperture

Energy Window

13% of Pass Energy

Electronics

HSA 3500 +

Working Pressure

10-11 to 10-7 mbar

Mounting
Working Distance

40 mm

Mounting Flange

DN100CF (6" OD)

Magnetic Shielding

Double µ-Metal Shielding

Electric Isolation

> 10 keV

APPLICATION NOTES

Photoelectron spectroscopy with UVLS and TMM 304
Photoelectron spectroscopy with UVLS and TMM 304
Angle-integrated and angle-resolved photoelectron spectroscopy measurements were performed using the SPECS UVLS ultraviolet-light source in combination with the toroidal-mirror monochromator SPECS TMM304, which was equipped with two cassettes of optical elements in order utilize the HeI and XeI emission lines with photon energies of hν=21.22eV and hν=8.437eV,respectively.
download PDF
Quantum Size Effects in uncoupled Al layers on graphitized SiC
Quantum Size Effects in uncoupled Al layers on graphitized SiC
track Quantum well states, measure 2D band structure, parallel component of wave vector, 2D spectrometer use
download PDF
Measurements of the Surface State of Au (111)
Measurements of the Surface State of Au (111)
The band structure of the (111) surface of Au was measured by high-resolution angle-resolved photoelectron spectroscopy. The experiments were performed using a SPECS UV 10/35 source, which has an energy resolution of about 2 meV and a spot size of about 1.5 mm diameter. The photon energy for all measurements was 21.23 eV (He I).
download PDF
Measurements of the Surface State of Cu (111)
Measurements of the Surface State of Cu (111)
The band structure of the (111) surface of Cu was measured by high-resolution angle-resolved photoelectron spectroscopy. The experiments were performed using a VG UV source, which has an energy resolution of about 2 meV and a spot size of about 1.5 mm diameter. The photon energy for all measurements was 21.23 eV (He I).
download PDF
Fermi-edge of a single crystal TiTe2 sample at low temperature
Fermi-edge of a single crystal TiTe2 sample at low temperature
The Fermi-edge of a single crystal TiTe2sample was measured at low temperature. The diode closest to the sample read 12 K. A sample temperature of 17 K was estimated. The data was taken with a PHOIBOS 150 CCD analyzer at 3 eV pass energy and with 0.2 mm slit width.
download PDF
Band Structure of Crystalline Graphite Layers on SiC (0001)
Band Structure of Crystalline Graphite Layers on SiC (0001)
The band structure of crystalline graphite layers on the (0001) surface of SiC was measured by high-resolution angle-resolved photoelectron spectroscopy. The experiments were performed using a SPECS UV source 10-35, which has an energy resolution of about 2 meV and a spot size of about 0.6 mm in diameter. The photon energy for all measurements were 40.81 eV (He II).
download PDF
High Angular Resolution Data from the Band Structure of Thin Layers of Indium on Si(111)
High Angular Resolution Data from the Band Structure of Thin Layers of Indium on Si(111)
The band structure of thin layers of indium on Si(111) was measured with ARPES. Due to electron confinement in the direction perpendicular to the surface, quantum well states (QWS) are formed. The experiments were performed at the BESSY II 10 m NIM beamline at the U125/2 undulator, which has an energy resolution of less than 1 meV, and a small spot size.
download PDF
Cross Section through the Brillouin Zone of Pb 2D Quantum Well State Bands
Cross Section through the Brillouin Zone of Pb 2D Quantum Well State Bands
Examining unexpected properties of Pb, a free electron metal
download PDF
Overlayer Quantum Well States
Overlayer Quantum Well States
Angle-resolved one-photon photoemission was used to investigate angular resolved photoemission from Ag overlayers on Cu(111).
download PDF
Resolving Power of the PHOIBOS Energy Analyzer Series
Resolving Power of the PHOIBOS Energy Analyzer Series
The line width of Xe and other rare gas levels using the SPECS gas cell UGC 10 and the SPECS UV-light source UVS 10/35 has been measured. The special geometry of the cell includes space charge compensation electrodes to demonstrate the ultimate energy resolution of the PHOIBOS analyzers.
download PDF
Ultimate energy resolution of the PHOIBOS Energy Analyzer series
Ultimate energy resolution of the PHOIBOS Energy Analyzer series
We have measured the line width of the Xe 5p3/2gas line using the SPECS gas cell UGC 10 and the SPECS UV-light source UVS 300. The special geometry of the cell includes space charge compensation electrodes to demonstrate the ultimate energy resolution of the PHOIBOS analyzers together with the 2D-CCD Imaging Detector.
download PDF
PHOIBOS 150 2D-CCD Wide Angle Mode in 2PPE
PHOIBOS 150 2D-CCD Wide Angle Mode in 2PPE
These notes describe the application of the angular resolving wide angle lens mode (WAM) in two-photon-photoemission spectroscopy (2PPE).
download PDF
Two-Photon-Photoemission
Two-Photon-Photoemission
This Note shows the one- and two-photon photoemission signal of the Cu(111) surface state at 300 K for the different angular resolved lens modes of the PHOIBOS analyzer at different pass energies Ep. The surface has been analyzed using a PHOIBOS 150 analyzer with the 2D CCD Detector.
download PDF
