PHOIBOS 100 SCD (inkl. PHOIBOS 100-63 SCD)

High Peformance Hemipsherical Energy Analyzer with MCD Detector for UPS, XPS, ISS and LEISS.

This product is discontinued

The PHOIBOS 100 hemispherical energy analyzer is a powerful tool for modern photoelectron spectroscopy. This analyzer can be operated in all relevant analysis modes, such as XPS, UPS, as well as AES, ISS and LEISS. Its design and the modular supplementary hardware makes this analyzer the most versatile PES analyzer in the market. It can easily be upgraded with all available SPECS detection systems.

The integrated SCD (single channel multi channeltron detector) detector is a well established and robust detection solution. The direct detection of electron signals yield quantitative counts per second (cps).

The energy analyzer section is equipped with 8 customizable entrance and 3 exit slits for UPS and XPS. The analyzer comes with a highly stable power supply, the HSA 3500 plus, for best performance in a wide kinetic energy range up to 3500 eV kinetic energy.

A special version with a smaller lens diamater (DN63CF) is available on request.

KEY FEATURES

  • Robust and Performant Analyzer for XPS, UPS, AES, ISS and LEIS
  • 100 mm Mean Radius
  • Quantitative Analysis
  • High Count Rate and Linearity
  • Robust Detector Technology
  • Double µ-Metal Shielding

MADE FOR THESE METHODS

2

SPECIFICATIONS

PHOIBOS 100 SCD (inkl. PHOIBOS 100-63 SCD)
Operation
Energy Dispersion by

Hemisphere

Slits/Apertures

8 Entrance, 3 Exit slits and Iris aperture

Lens Modes

  • Angular resolved Mode
  • Transmission Mode
  • Spatially resolved Mode
  • Acceptance Angle

    ±15°

    Kinetic Energy Range

    0 - 3500 eV

    Pass Energies

    0 - 550 eV continously adjustable

    Detector

    SCD

    Detector Channels

    1

    Measurement Modes

  • Sweeping Mode
  • Fixed Mode
  • Energy Window

    4% of Pass Energy

    Electronics

    HSA 3500 plus HT 100

    Working Pressure

    10-11 to 10-7 mbar

    Mounting
    Mounting Flange

    DN100 CF

    Magnetic Shielding

    Double µ-Metal Shielding

    Working Distance

    40 mm

    Electric Isolation

    up to 7 keV

    Performance
    Angular Resolution

    < 0.5°

    Energy Resolution

    <10 meV for XPS

    Lateral Resolution

    < 100 µm

    XPS Count Rates UHV

    Ag 3d measured with XR 50 300 W MgKa > 300 kcps @ 0.85 eV, > 900 kcps @ 1.00 eV

    PUBLICATIONS

    1. (2019) Insights into the role of Zn and Ga in the hydrogenation of CO2 to methanol over Pd
      Read more
    2. (2017) Catalytic consequences of Ga promotion on Cu for CO2 hydrogenation to methanol
      Read more

    SPARE PARTS

    8
    Product image
    Product description
    Article No.

    Channeltron-Array (1)

    Replacement for single channelron detector SCS for PHOIBOS 100 and 150

    2079150300
    5-Channeltron-Detection Unit for PHOIBOS 100

    Refurbished and tested MCD-5 detector for PHOIBOS 100

    2011500451
    Channeltron-Array set (5)

    Replacement for 5-channel channelron detector MCD-5 for PHOIBOS 100

    2079150301
    Cu gasket DN370CF for PHOIBOS 100

    PHOIBOS 100 analyzer main flange gasket for Releases R3, R6, R7

    2060000572
    Cu gasket for PHOIBOS 100

    PHOIBOS 100 analyzer main flange gasket for Releases R5

    2070000338
    Rotary feedthrough for IRIS

    Replacement feedthrough for PHOIBOS Release R5 & R6 iris mechanism

    2060001175
    Spindle with Spur and Bevel Gear for Iris

    Replacement spindle for PHOIBOS Release R5 & R6 iris mechanism

    2055021656
    Tubus 3 with Iris

    Replacement iris mechanism for PHOIBOS Release R5 & R6

    2079150291

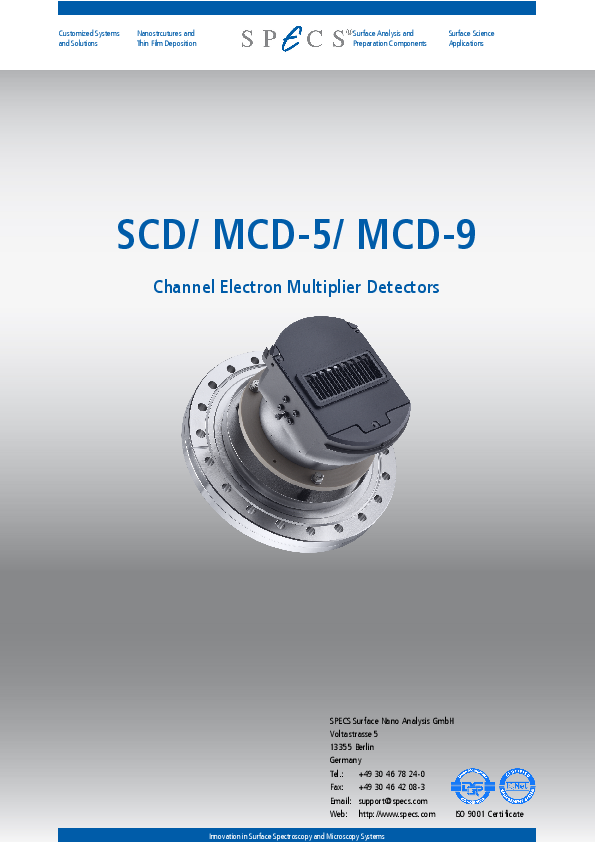

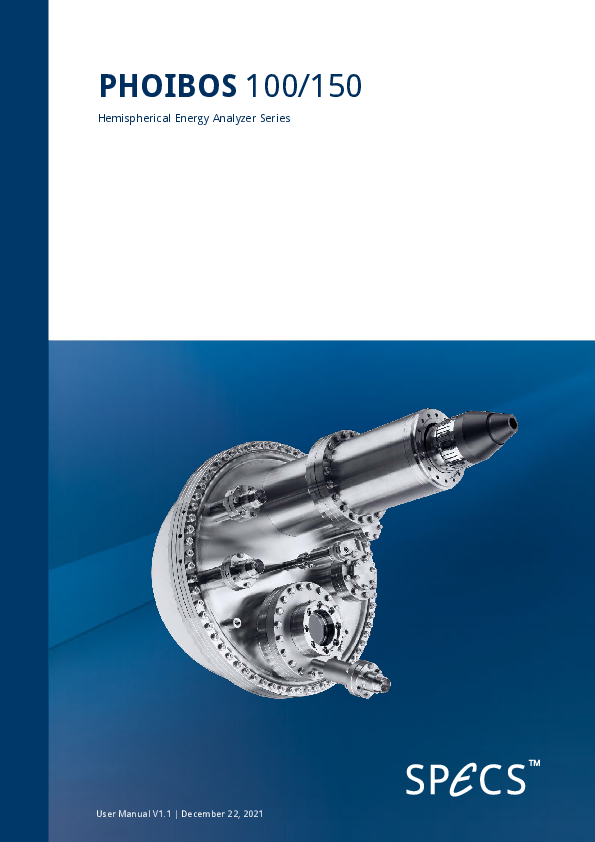

    DOWNLOADS
