FOCUS EFM 3s

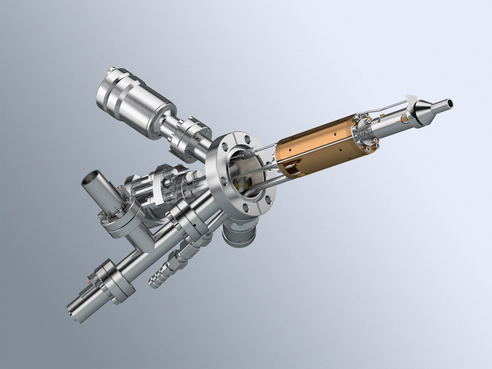

The EFM 3 with its proprietary cooling concept has been the first commercial evaporator using an integrated flux monitor. Adds ion suppression to the classic EFM3 to prevent high energetic ions generating defects at the surface.

This device is a product of FOCUS GmbH. Further details can be found here: FOCUS EFM 3s

As the very first family member the EFM 3 is designed for thin film growth and molecular beam epitaxy. Sub-monolayer and multilayer systems can be produced with evaporation rates varying from 1/10 monolayer per minute to several monolayers per second. The EFM 3s adds an additional electrode to the EFM 3. A part of the evaporant beam in all products of the EFM-series is ionized by the electron bombardment during heating. Most of these ions are captured by the flux monitor electrode.

The precisely defined evaporant beam profile allows highly uniform deposition on the sample. The deposition area is determined by the choice of three different easily exchangeable exit apertures and the distance from the source to the sample. Integral part of the EFM 3 is a z-shift for material feed when using rods or simply to optimize the distance between the electron beam filament and material to be evaporated either from a rod or crucible.

As the evaporant is on high voltage with respect to the grounded sample the remaining ions may create defects in the substrate surface and deposit energy.

To generate a 100 % neutral beam an additional voltage is applied at the suppressor electrode of the EFM 3s.

The integrated flux-monitor and the shutter allow for a precise reproducibility of previously applied evaporation rates before the sample is exposed to the evaporant (even with shutter speed closed).

Upgrade packages for existing EFM 3 are available on request. All other features of the EFM 3 are fully preserved.

KEY FEATURES

  • Evaporation area 4-20 mm
  • Flux monitor
  • Integrated shutter
  • Ion suppressor (neutral evaporant beam)
  • Crucible capacity up to about 700 mm3
  • Mounting flange DN 40 CF
  • All other features same as EFM 3

MADE FOR THESE METHODS

1

SPECIFICATIONS

FOCUS EFM 3s
Operation
Number of Pockets

1x

Water Cooling

internal

E-beam power

300 W

Operating Pressure

< 10-10 - 10-5 mbar

Optional Accessories

Non standard lengths

Mounting
Mounting Flange

NW35CF (2.75 ")

Insertion Depth

210 mm

Max. Rod Feed

25 mm

Power Supply

300 W

Shutter

Motorized shutter
