FG 22/35

Low Energy Electron Source for Sample Neutralization

The FG 22/35 is a compact, easy to handle, reliable flood gun for charge neutralization of positively charged insulators or semiconductors. It allows operation in the energy range of 0 - 500 eV for charge compensation in typical XPS/AES and SIMS experiments, respectively.

KEY FEATURES

  • High electron beam current
  • Energy range 0 - 500 eV
  • Stabilized emission

MADE FOR THESE METHODS

1
Charge Compensation
Methods to compensate positive or negative charging of insulating sample surfaces during characterization with charged particles, like XPS and SEM.

SPECIFICATIONS

FG 22/35
Operation
Electron Current

> 1 μA

Electron Energy

0-500 eV

Scannable

-

Applications

XPS, AES, SIMS

Optional Accessories

-

Performance
Scan Range

-

Spot Size

15-25 mm at 40 mm

Mounting
Mounting Flange

DN35CF (2.75”)

Insertion Depth

146 mm

Working Distance

40 mm

Power Supply

COSCON FG

RELATED PRODUCTS

1
COSCON FG
Power Supply for FG 22/35
view

APPLICATION NOTES

Monochromatic XPS Performance with insulating polymeric materials
Monochromatic XPS Performance with insulating polymeric materials

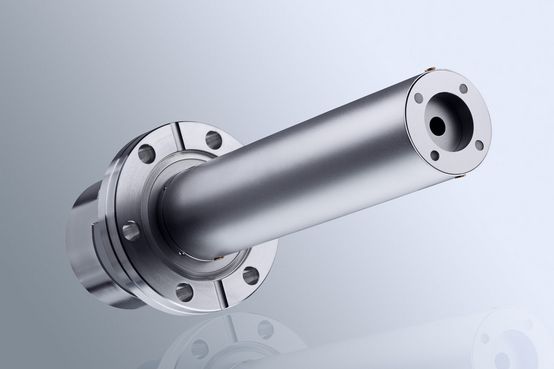

The high resolution capability of the PHOIBOS 150 MCD-9 analyzer, the FOCUS 500 monochromator and the FG 15/40 flood gun was demonstrated by XPS measurements on a PET (Polyethylene terephthalate) surface.
download PDF

SPARE PARTS

1
Product image
Product description
Article No.

Tungsten filament for RHEED and FG 22

Replacement cathode for FG22/35 and RHEED

2060004171

DOWNLOADS

2
FG 22/35 Flood Gun
Manuals

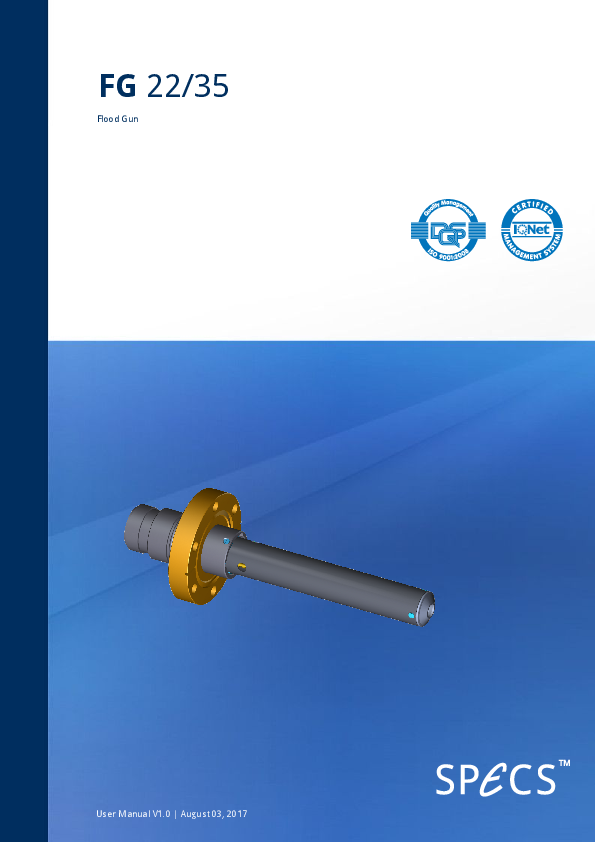

FG 22/35 Flood Gun
Electron Flood Gun for low energy electron applications (surface charge compensation).
Please login to download this file
COSCON FG
Manuals

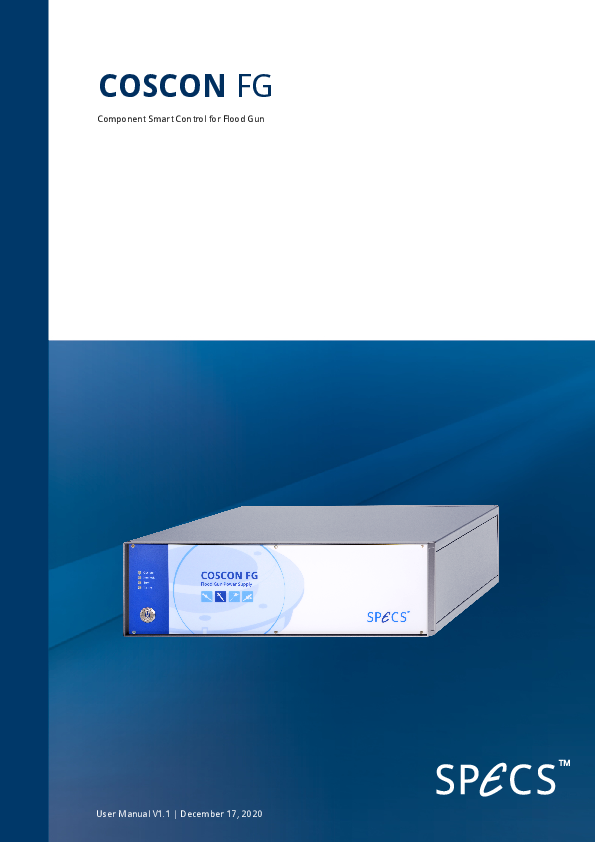

COSCON FG Component Smart Control for Flood Gun
Component Smart Control power supply unit for the remote control of the low energy electron source FG 22/35 (flood gun).
Please login to download this file
