Detail

Carving

The Carving Manipulator Combines Lowest Temperatures and Extrem Precise 6 Axes Manipulation.

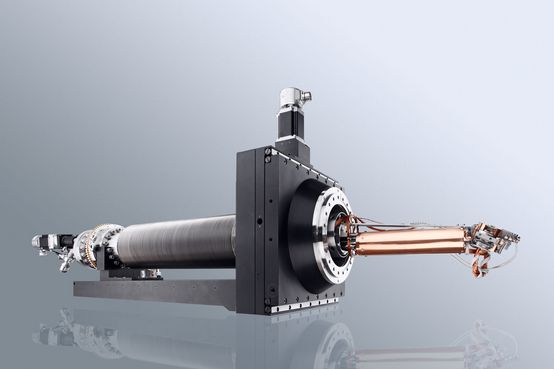

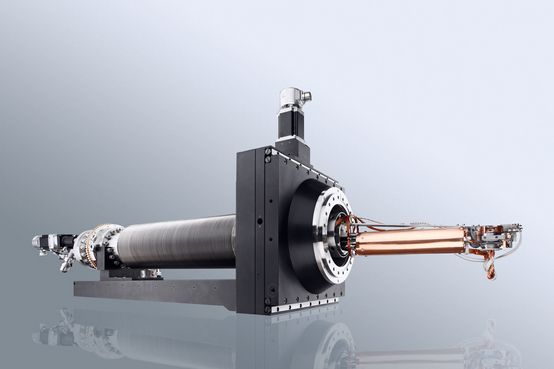

The Carving manipulator is a 6 axes manipulator (X,Y,Z two polar and azimuthal rotation and tilt) for ARPES measurements at low temperatures and with extreme precison. It uniqe design keeps the mechanics at room temperature while the sample is cooled to liquid helium temperature. The manipulator comes for SPECS SH2/12 sample holders with optional direct current heating.

KEY FEATURES

High Presision Tilt and Polar Rotation of ± 30° and 0.01° accuracy
He Cooled Sample stage with 12.5 K achievable
Low He Consumption
6 Axes Motorized

MADE FOR THESE METHODS
RELATED PRODUCTS
DOWNLOADS

MADE FOR THESE METHODS

1

Angle-Resolved Photoelectron Spectroscopy detects the energy and angle distribution of photoelectrons to determine the electronic structure of solids.

RELATED PRODUCTS

1

System Module for Sample Manipulation

DOWNLOADS

3

Carving Manipulator Fitted with Stage for SH2/12 Sample Holders

Carving Manipulator Fitted with Stage for SH2/12 Sample Holders — Carving manipulator with rotational axes that intersect at the center of the sample surface - to be used with SH2/12 sample holders.

Please login to download this file

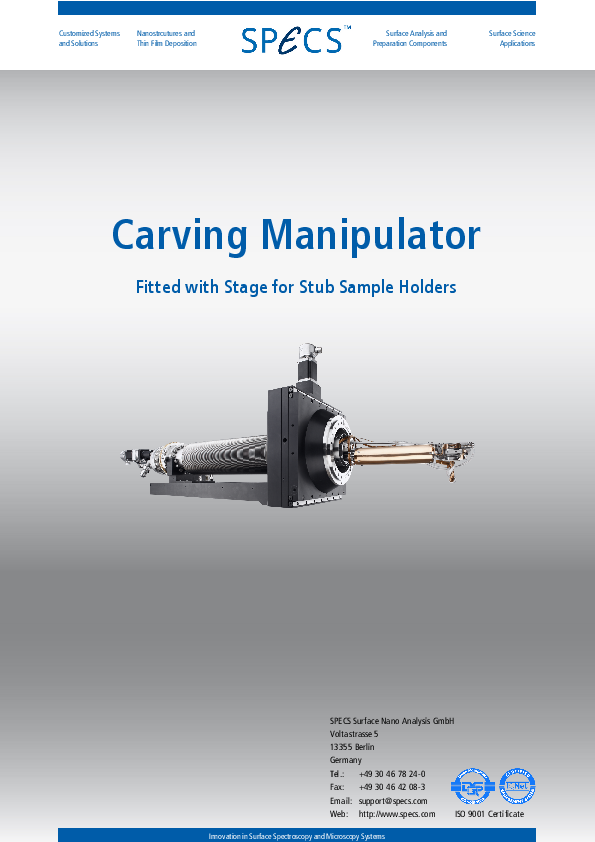

Carving Manipulator Fitted with Stage for Stub Sample Holders

Carving Manipulator Fitted with Stage for Stub Sample Holders — Carving manipulator with rotational axes that intersect at the center of the sample surface - to be used with stub sample holders.

Please login to download this file

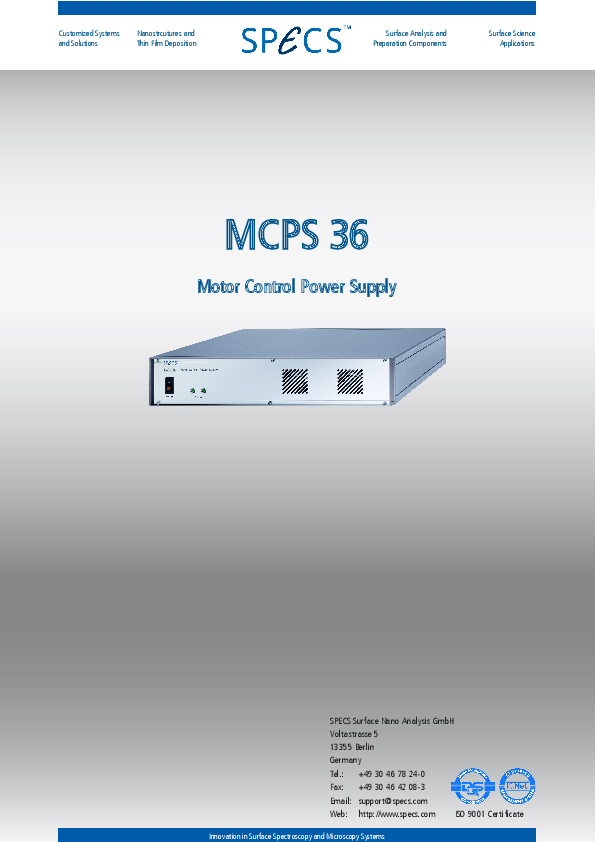

MCPS 36 Motor Control Power Supply — Power supply for Schneider Electric ILS1 integrated drives using the CANopen protocol.

Please login to download this file
