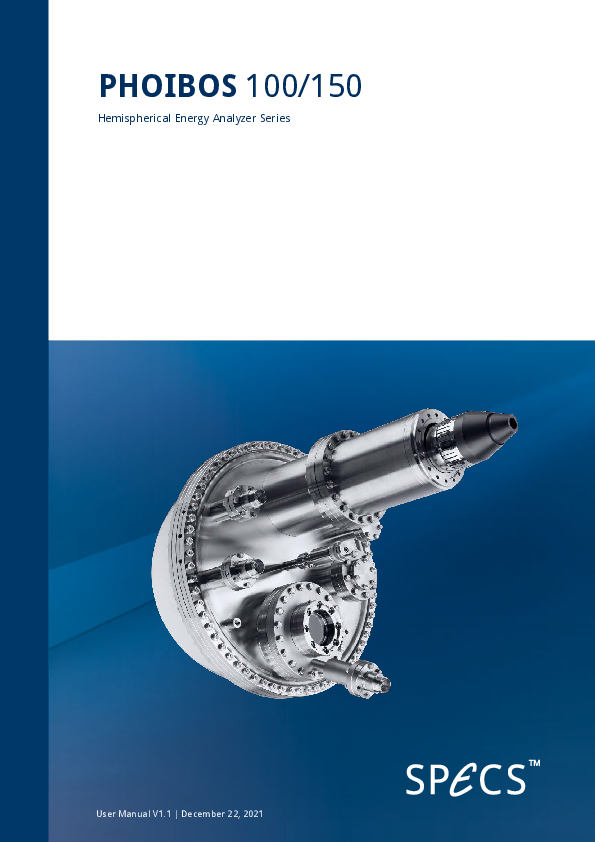

PHOIBOS 150 HV 2D-CMOS/-CCD
High Voltage Energy Analyzer for HAXPES up to 7 keV
The PHOIBOS 150 HV analyzer series is the intrument of choice for high energy XPS analysis (HAXPES). High voltage power supplies and a highly stable analyzer design allow photoemission up to a kinectic energy of 7 keV, covering most of the existing x-ray light sources and synchrotron facilities.
This analyzer can be operated in high voltage mode and in additon in all relevant analysis modes, such as ARPES*, (AR)XPS, UPS, as well as AES, ISS and LEISS. Its design and the modular supplementary hardware makes this analyzer the most versatile PES analyzer in the market.
With a 2D CMOS detector is shows outstanding performance in countrate, linearity and a true pule counting mechanism. It combines a state of the art lens system with a proven hemipshere design for highest transmission and resolution. The analyzer can be operated in transmission (XPS/UPS), angular resolved (ARPES and ARXPS) and magnification mode (slab imaging).

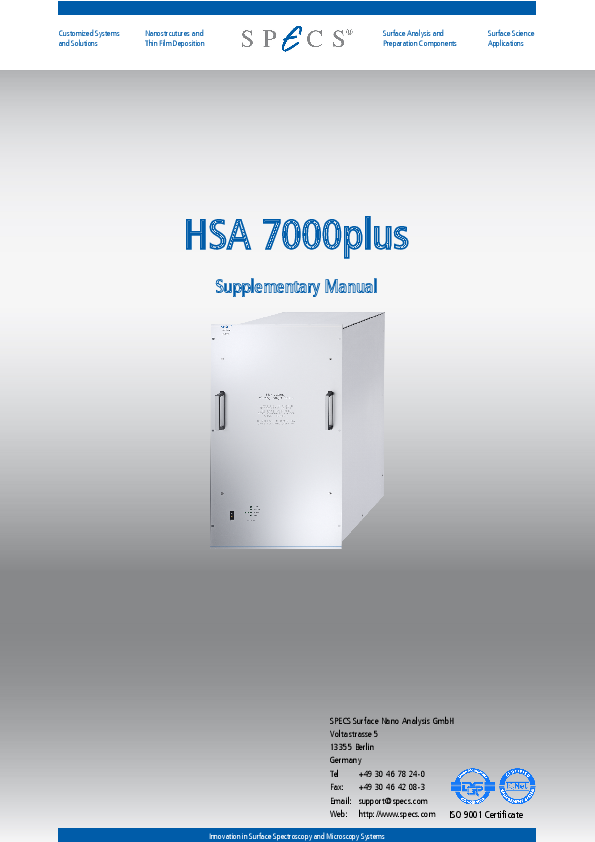

The analyzer comes with a highly stable power supply, the HSA 7000, for best performance in at high and medium kinetic energy range up to 7000 eV.

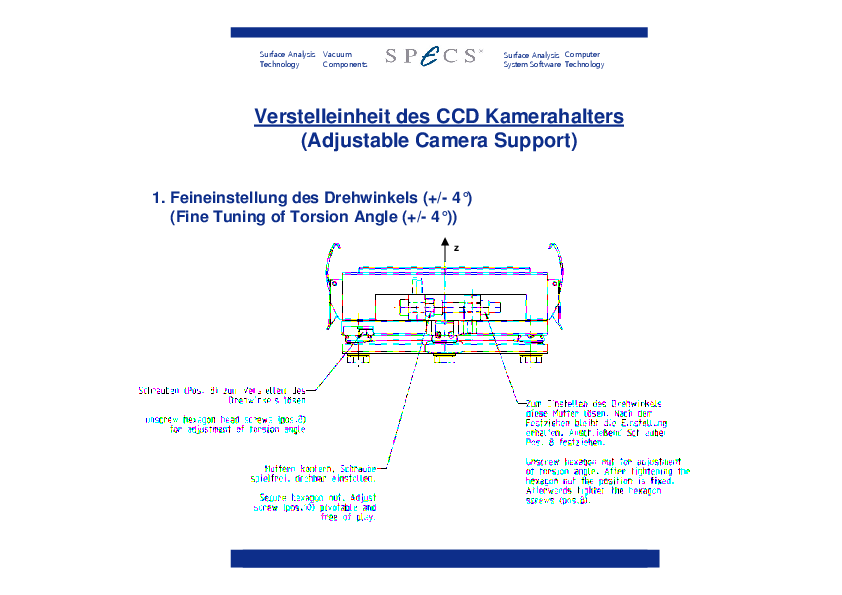

A classical CCD camera detection system is available on request.
*Please note: The energy resolution of UPS and ARPES is limited due to the high voltage power supply. For Hr-ARPES the standard HSA 3500 plus can be used also with HV analyzers.
SPECIFICATIONS
Kinetic Energy Range | 0-7000 eV |
Pass Energies | 0-550 eV Continously Adjustable |
Energy Dispersion | Hemisphere |
Lens Modes | Transmission Mode, Angular Resolved Mode, Magnification (Lateral Resolved) Mode |
Measurement Modes | Snapshot Mode, Sweeping Mode, Fixed Energy Mode |

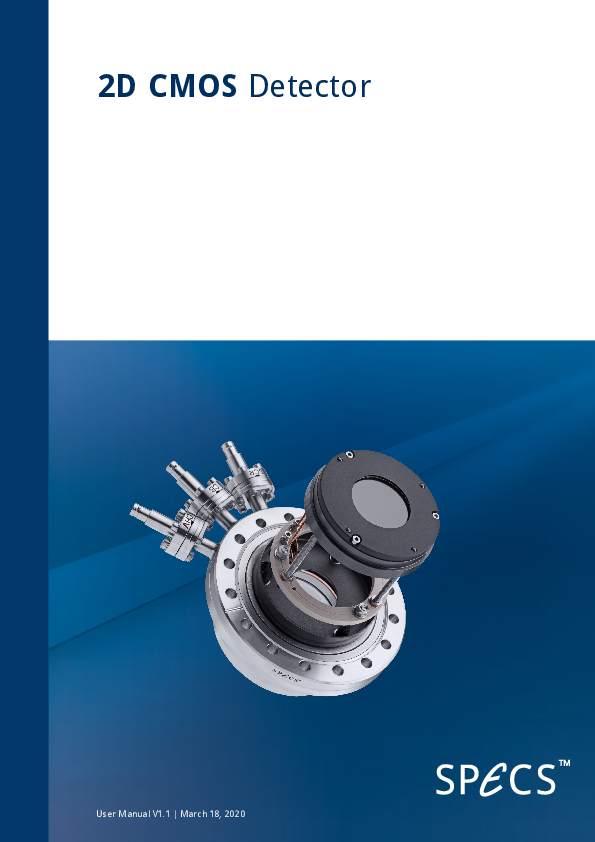

Detector | 2D CMOS Detector |
Slits/Apertures | 8 entrance and 3 exit slits and iris aperture |
Energy Window | 13% of Pass Energy |
Working Pressure | 10-11 to 10-7 mbar |
Electronics | HSA 7000 |
Energy Resolution | < 2 meV in UPS |
Angular Resolution | < 0.1° |
k-Resolution | N/A |
Acceptance Angle | ±15°, ±7°, ±4° and ±3° |
Lateral Resolution | < 35 µm |
Smallest Acceptance Spot | 100 µm |
XPS Count Rates UHV | tba |
Detector Channels | 1285 x 730 (with Channel Binning) |
Working Distance | 40 mm |
Mounting Flange | DN100CF (6" OD) |
Magnetic Shielding | Double µ-Metal Shielding |
Electric Isolation | > 10 keV |
SPARE PARTS
![](/typo3conf/ext/specs_products/Resources/Public/Icons/spareparts_fallback.png)
Spare channelplate set for all 40 mm CCD detectors
![](/typo3conf/ext/specs_products/Resources/Public/Icons/spareparts_fallback.png)
Spare phosphor screen for all 40 mm CCD detectors. Exchange with channelplates is recommended.
![](/typo3conf/ext/specs_products/Resources/Public/Icons/spareparts_fallback.png)
Replacement feedthrough for PHOIBOS Release R5 & R6 iris mechanism
![](/typo3conf/ext/specs_products/Resources/Public/Icons/spareparts_fallback.png)
Replacement spindle for PHOIBOS Release R5 & R6 iris mechanism
